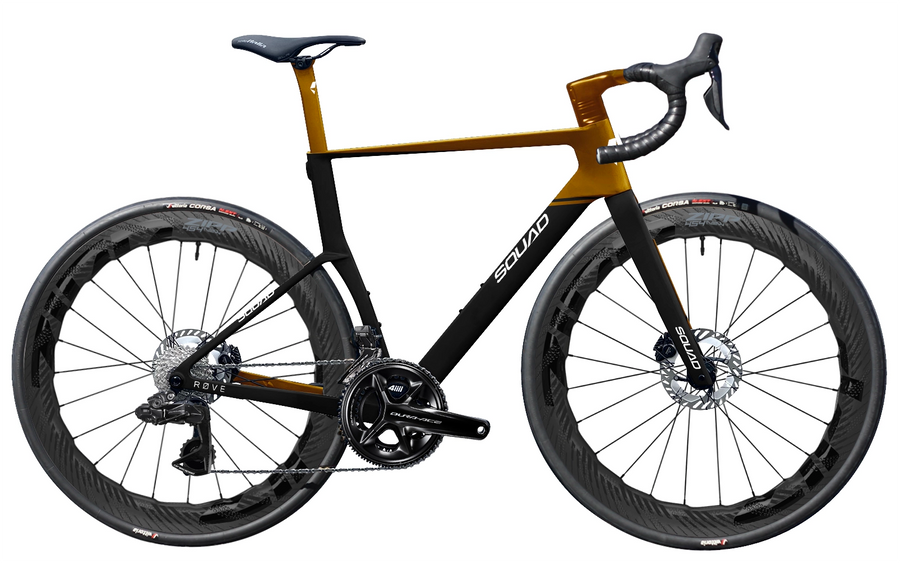

Dura-Ace Di2
From $13,749
- One-piece carbon cockpit
- Power meter 4iiii Dual included
- Zipp 303s carbon wheelset
Squad Rove Shimano Ultegra, ceramicspeed BB T47 alpha, Selle Italia SLR, Zipp 404 FC, 4iiii powermeter dual side precison 3+ pro
Features
Build specs
Compare the base build specs. For full details and ordering, continue to the product.

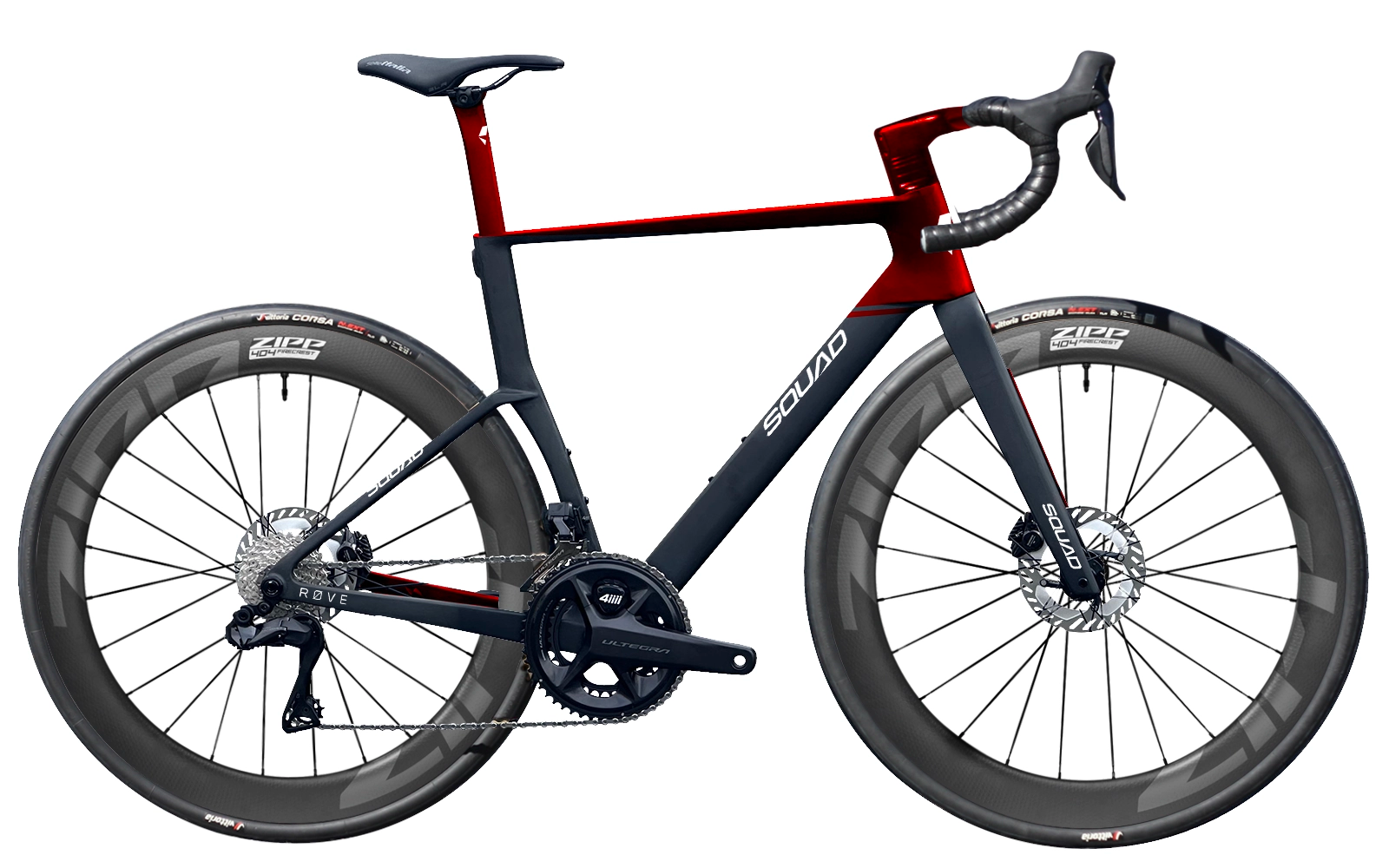

Shimano Ultegra r-8150 di2 12s
From: $10,999
- One-piece carbon cockpit
- Power meter 4iiii Dual included
- Zipp 303s carbon wheelset

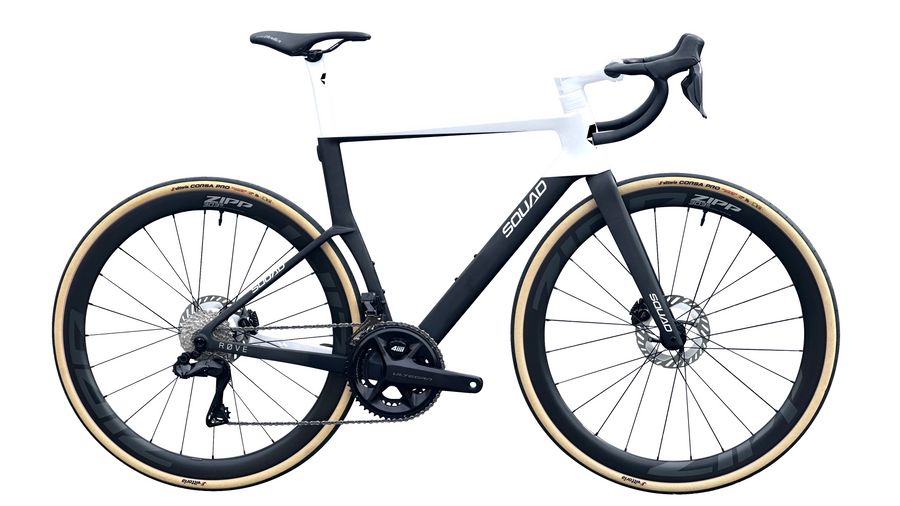

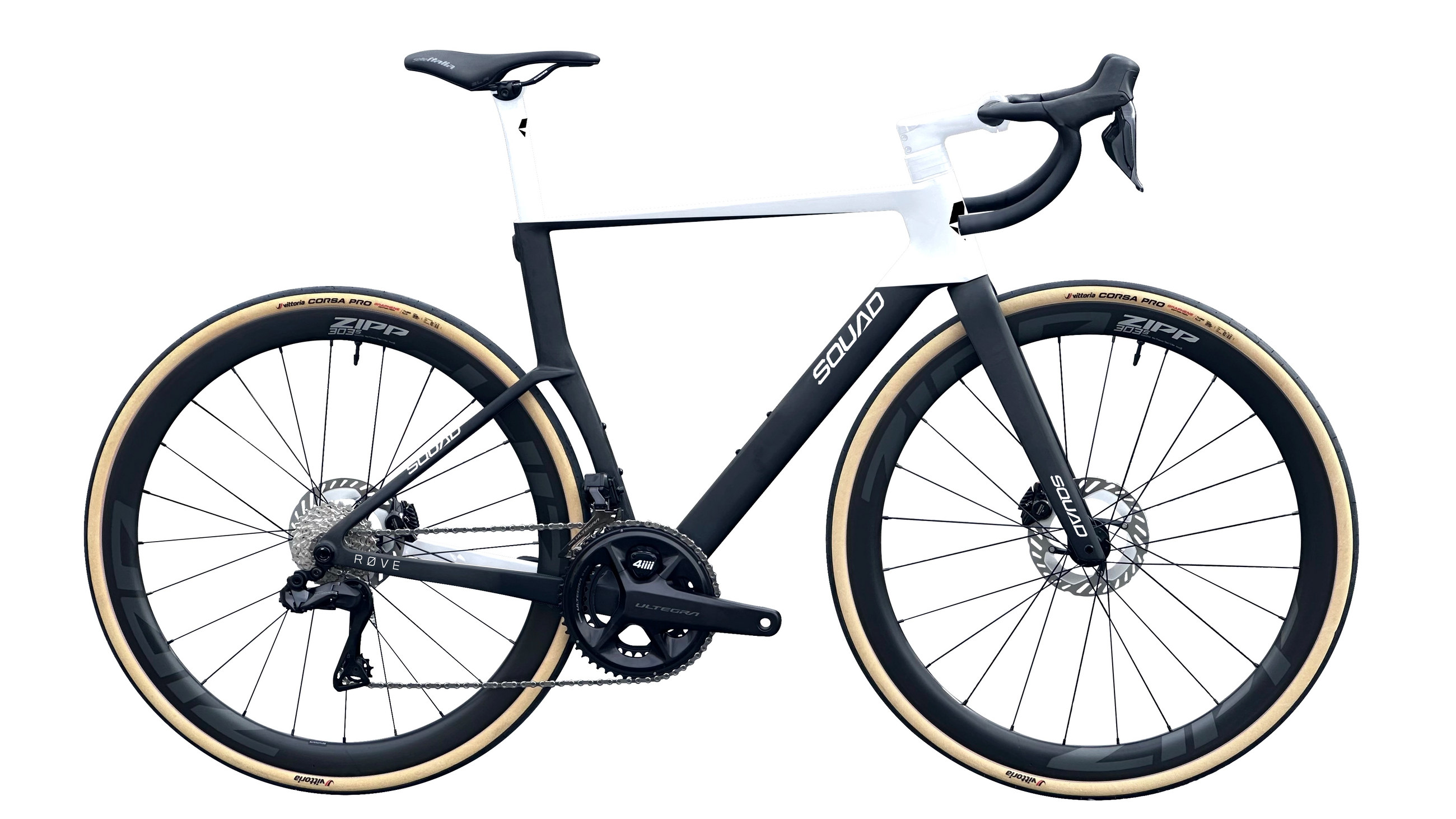

Shimano 105 R-7150 Di2 12s
From $8749
- Aero Handlebar Alloy
- Integrated Stem
- Zipp 303 s
Sizes
48 X-Small/ 52 Small/ 54 Medium/56 Large/ 58 X-Large
Fork
Squad Rove SMR
Cockpit
Squad V-12 Integrated HB
Handlebar Sizing
80x38, 80x90,90x38, 90x40, 90x42, 100x38, 100x40, 100x42, 100x44, 110x40, 110x42, 110x44, 120x40, 120x42, 120x44, 130x42
Seat Post
Squad Rove Aero
Saddle
Selle Italia SLR BOOST EVO
Bottom Bracket
T-47
Headset
FSA NO.55R 1.5 ACR
Front Thru Axle
Robert Axle Project 120 mm Lightning L mm M12 x 1.5
Rear Thru Axle
Robert Axle Project Ligthning L173 mm x M12 x 1.5 UDH
Wheelset
Zipp 303 s
Tires
Vittoria Corsa Pro 32 mm
Shifter/Brake Levers
Shimano Dura Ace R-9250
Crankset
Shimano Dura Ace R-9200
Powermeter
4iiii Dual Side Precision 3+ Pro
Crank Sizing
160/165/170/1752.5/175 mm
Chain
Shimano CN M9100 12s
Cassette
Shimano Dura Ace R-9200 11x30
Front Derailleur
Shimano Dura Ace R-9250 Di2
Rear Derailleur
Shimano Dura Ace R-9250 Di2
Front Brake Rotor
RT-CL 900 160 mm
Rear Brake Rotor
RT-CL 900 140 mm
Accessories
Garmin/Wahoo holder incl
Max Tire Width
42 mm Front/45 mm rear
Sizes
48 X-Small/ 52 Small/ 54 Medium/56 Large/ 58 X-Large
Fork
Squad Rove SMR
Cockpit
Squad V-12 Integrated HB
Handlebar Sizing
80x38, 80x90,90x38, 90x40, 90x42, 100x38, 100x40, 100x42, 100x44, 110x40, 110x42, 110x44, 120x40, 120x42, 120x44, 130x42
Seat Post
Squad Rove Aero
Saddle
Selle Italia SLR BOOST EVO
Bottom Bracket
T-47
Headset
FSA NO.55R 1.5 ACR
Front Thru Axle
Robert Axle Project 120 mm Lightning L mm M12 x 1.5
Rear Thru Axle
Robert Axle Project Ligthning L173 mm x M12 x 1.5 UDH
Wheelset
Zipp 303 s
Tires
Vittoria Corsa Pro 32 mm
Shifter/Brake Levers
Shimano Ultegra
Crankset
Shimano Ultegra R-8100 52x36
Powermeter
4iiii Dual Side Precision 3+ Pro
Crank Sizing
160/165/170/1752.5/175 mm
Chain
Shimano M-8100 12s
Cassette
Shimano Ultegra 11/30 or 11/34
Front Derailleur
Shimano Ultegra R-8150 Di2
Rear Derailleur
Shimano Ultegra R150 Di2
Front Brake Rotor
Shimano CL-RT800 160 mm
Rear Brake Rotor
Shimano CL-RT800 140 mm
Accessories
Garmin/Wahoo holder incl
Max Tire Width
42 mm Front/45 mm rear
Sizes
48 X-Small/ 52 Small/ 54 Medium/56 Large/ 58 X-Large
Fork
Squad Fantom SMR
Cockpit
Handlebar Vision Trimax Aero Alloy
Handlebar Sizing
400 mm, 420 mm, 440 mm // Stem: FSA ACR 70/80/90/100/110/120/130 mm
Seat Post
Squad Fantom Aero
Saddle
Selle Italia SLR BOOST EVO
Bottom Bracket
T-47
Headset
FSA NO.55R 1.5 ACR
Front Thru Axle
Robert Axle Project 12 mm Lightning L mm M12 x 1.5
Rear Thru Axle
Robert Axle Project Ligthning L723 mm x M12 x 1.5 UDH
Wheelset
Zipp 303 s
Tires
Vittoria Rubino TLR 700x30
Shifter/Brake Levers
Shimano 105 R-7150 Di2
Crankset
Shimano R-7100 50x34/52x36
Powermeter
N/A
Crank Sizing
160/165/170/172.5/175 mm
Chain
Shimano CN M7100 SLX 12s
Cassette
Shimano CS-HG 710 11x36
Front Derailleur
Shimano 105 R-7150 Di2
Rear Derailleur
Shimano 105 R-7150 Di2
Front Brake Rotor
Shimano RT-CL 700 160 mm
Rear Brake Rotor
Shimano RT-CL 700 140 mm
Accessories
Max Tire Width
42 mm Front/45 mm rear

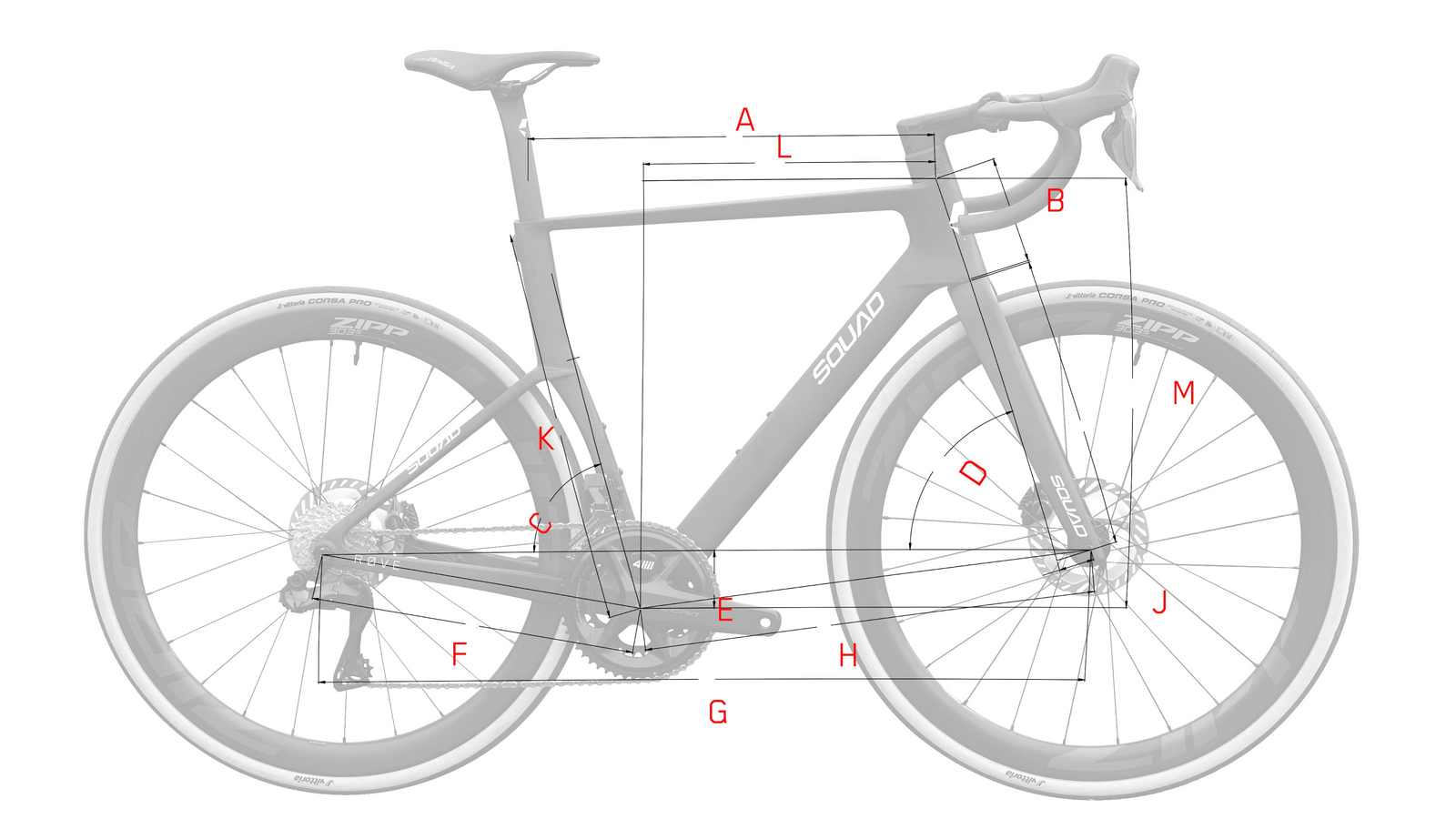

GEOMETRY
All measurements in millimetres (mm) and degrees (°).
| Size | X-Small (48) | Small (52) | Medium (54) | Large (56) | X-Large (57.5) |
|---|---|---|---|---|---|
| A Top Tube (mm) | 531 | 530 | 543.9 | 563 | 575.4 |
| B Head Tube Length (mm) | 100 | 130 | 148 | 166 | 186 |
| C Seat Tube Angle (°) | 74.5 | 74 | 74 | 73.5 | 73.5 |
| D Head Tube Angle (°) | 71 | 72.5 | 73 | 73.5 | 73.5 |
| E BB Drop (mm) | 70 | 72 | 72 | 72 | 72 |
| F Chainstay (mm) | 415 | 410 | 410 | 410 | 410 |
| G Wheelbase (mm) | 991.2 | 973.8 | 983 | 992 | 1004.6 |
| H BB → Front (mm) | 571 | 574.7 | 584 | 593 | 605.3 |
| I Fork Length (mm) | 374 | 368 | 368 | 368 | 368 |
| J Fork Rake (mm) | 45 | 45 | 45 | 45 | 45 |
| K Seat Tube C/T (mm) | 447.8 | 500 | 520 | 540 | 560 |
| L Reach (mm) | 388 | 377 | 385 | 393 | 400 |
| M Stack (mm) | 511 | 535 | 554 | 573 | 592 |
| Y Standover (mm) | - | - | - | - | - |
| PX Pad X (mm) | - | - | - | - | - |
| PY Pad Y (mm) | - | - | - | - | - |
| N Tire Clearance Max (mm) | Ft 42 mm/Rr 45 mm | Ft 42 mm/Rr 45 mm | Ft 42 mm/Rr 45 mm | Ft 42 mm/Rr 45 mm | Ft 42 mm/Rr 45 mm |
Specs subject to change. All values are nominal and may vary slightly.
