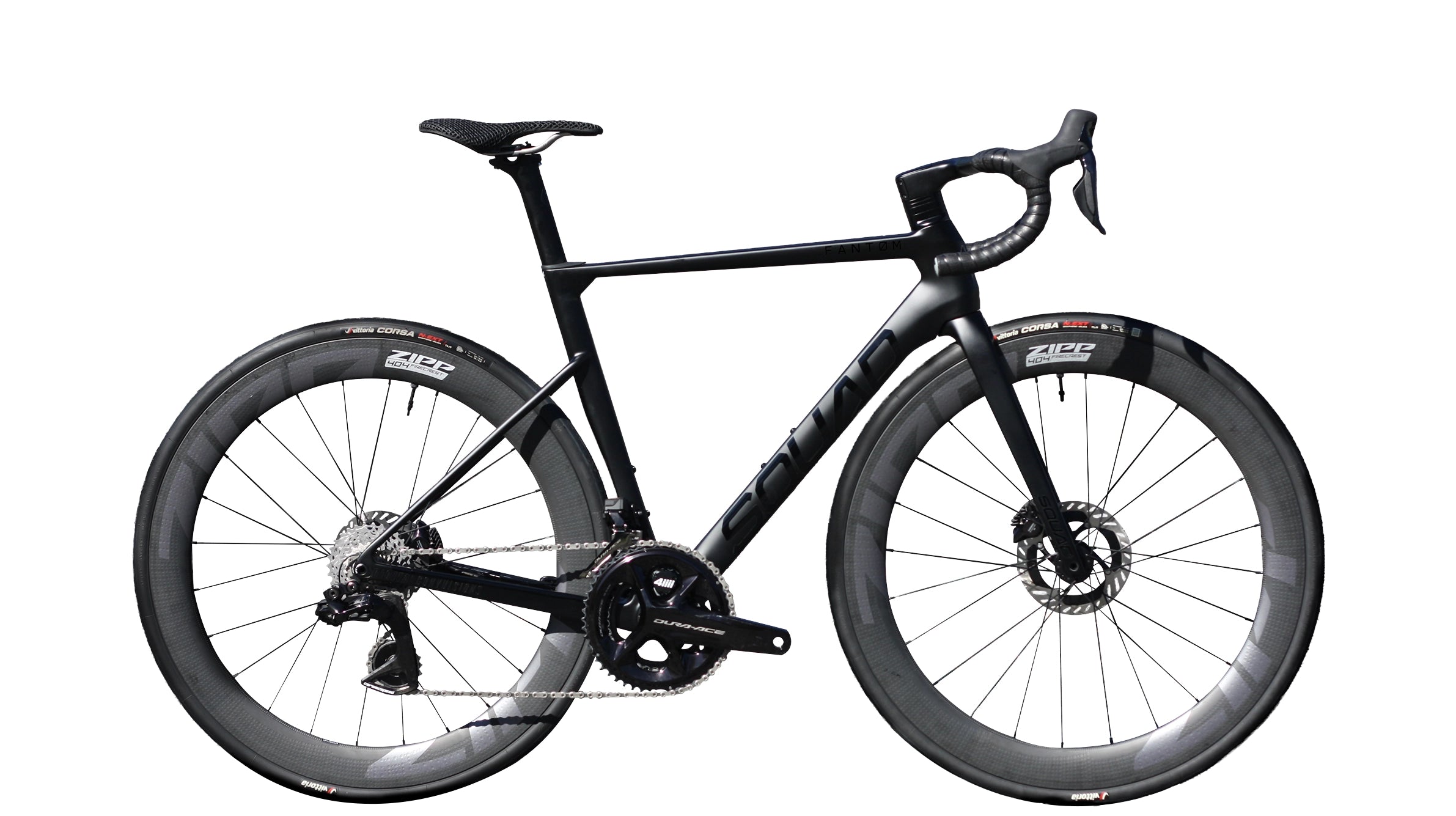

Dura-Ace Di2
From $13,949
- One-piece carbon cockpit
- Power meter included
- Reserve carbon wheelset

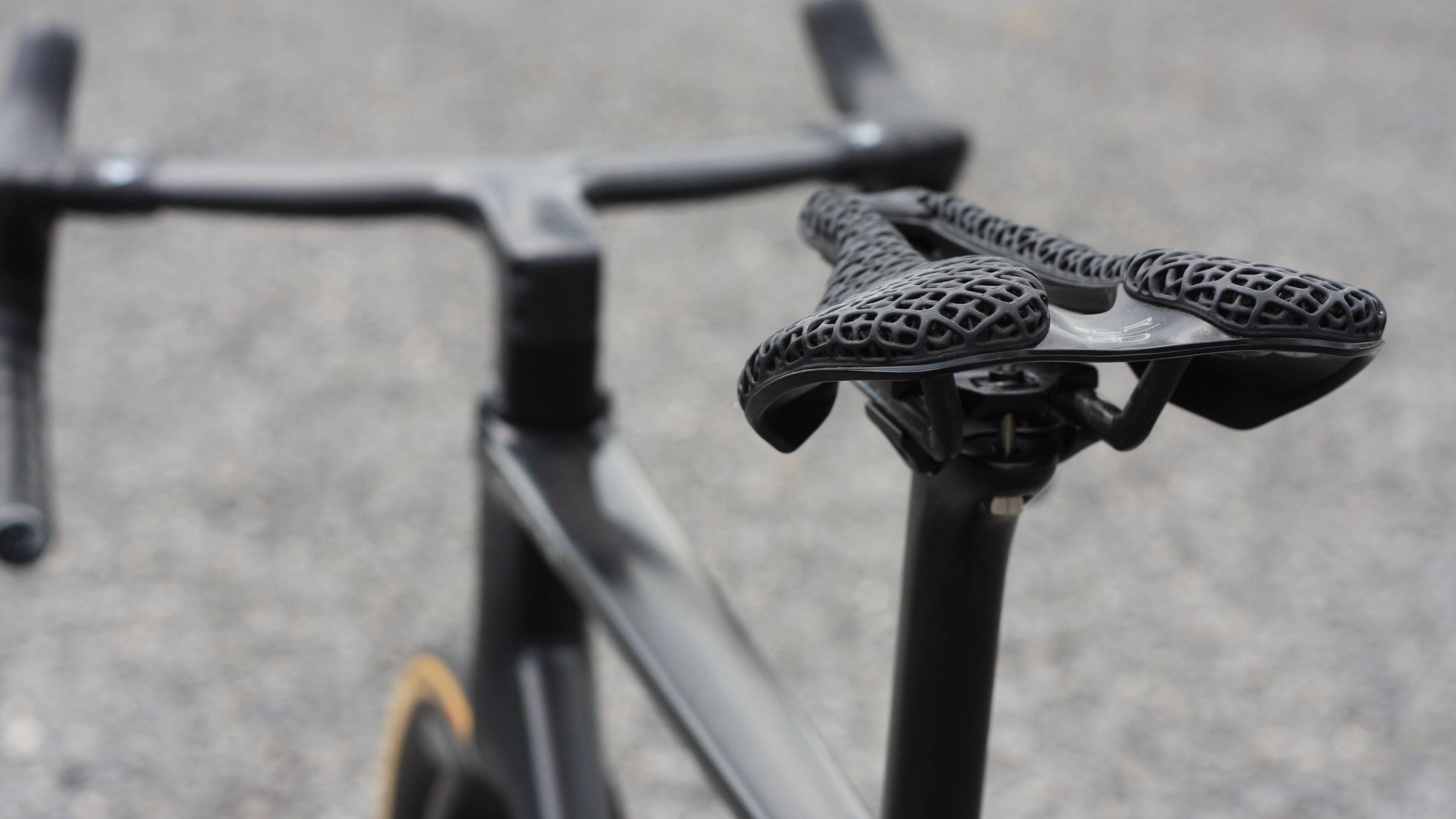

Squad Fantom Shimano Dura Ace, Ceramicspeed OSPW RS ALPHA , ceramicspeed bb t47 alpha, Selle Italia SLR Carbonio 3D print, Zipp 404, 4iiii powermeter dual side precison 3+ pro
Features
-
Build specs
Compare the base build specs. For full details and ordering, continue to the product.
Shimano Ultegra r-8150 di2 12s
$11,195
- One-piece carbon cockpit
- Power meter 4iiii Dual included
- Zipp 303s carbon wheelset

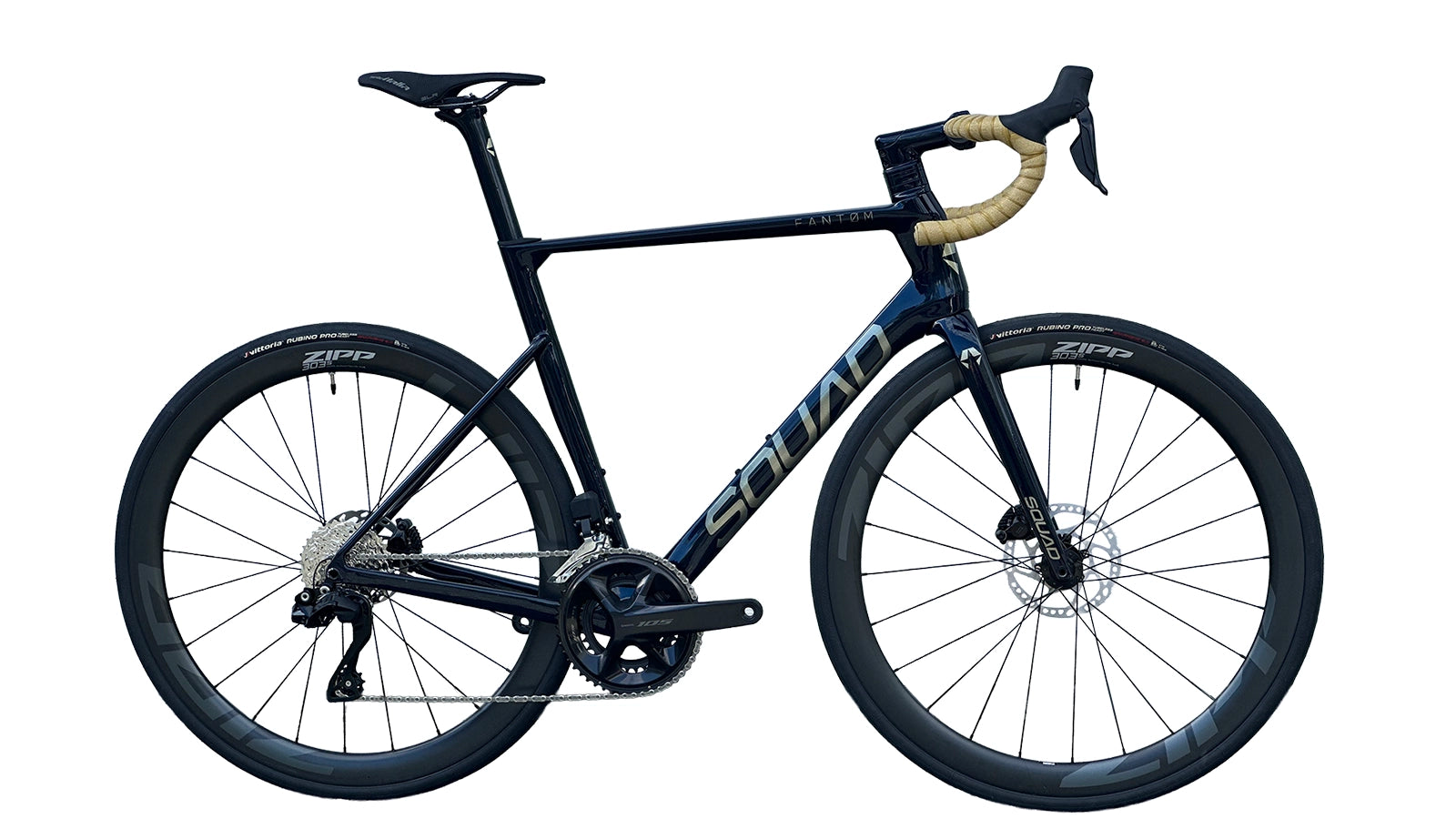

Shimano 105 R-7150 Di2 12s
8995
- Aero Handlebar Alloy
- Integrated Stem
- Zipp 303 s
Sizes
48 X-Small/ 52 Small/ 54 Medium/56 Large/ 58 X-Large
Fork
Squad Fantom SMR

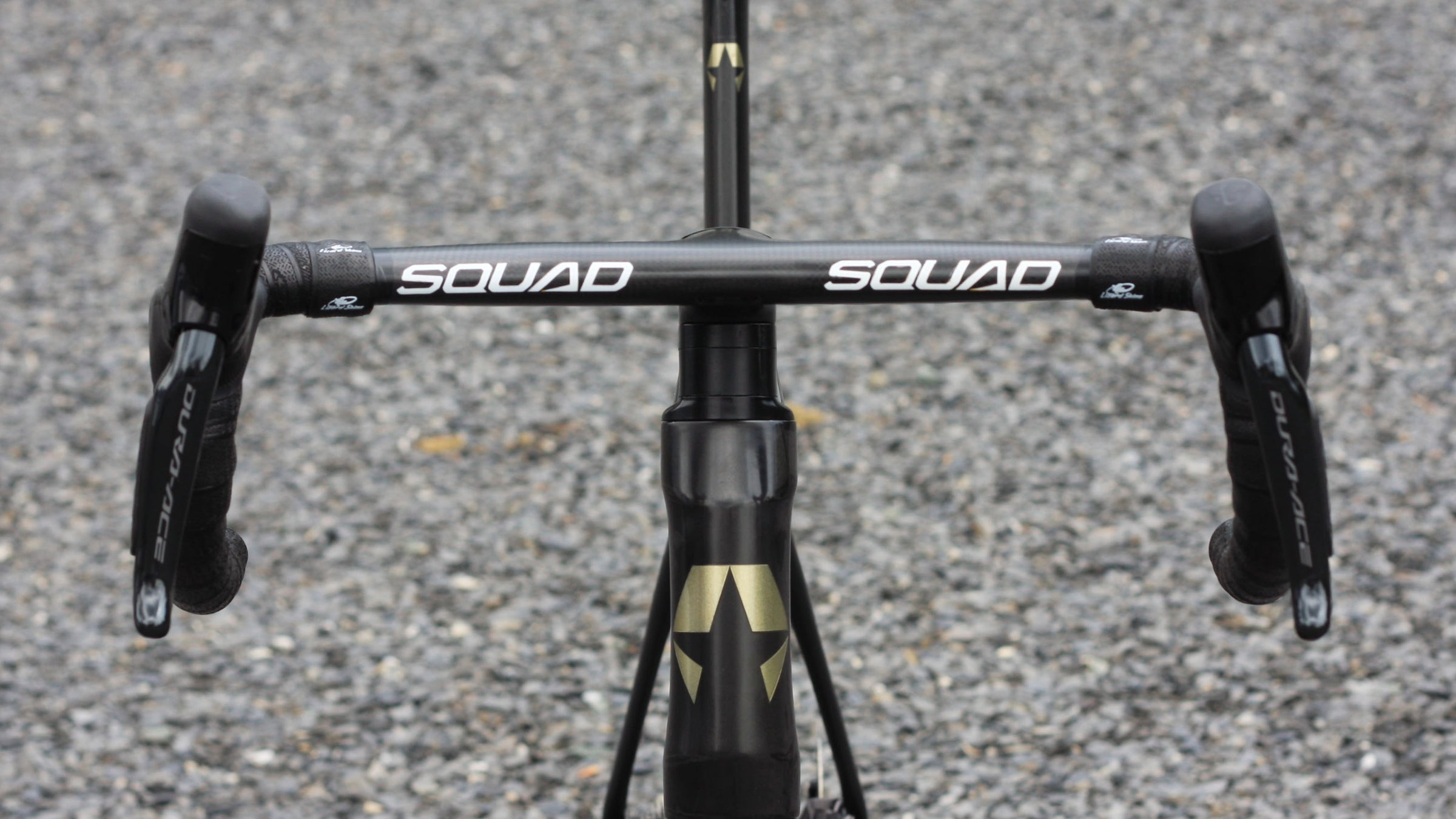

Cockpit
Squad V-12 Integrated HB
Handlebar Sizing
80x38, 80x90,90x38, 90x40, 90x42, 100x38, 100x40, 100x42, 100x44, 110x40, 110x42, 110x44, 120x40, 120x42, 120x44, 130x42
Seat Post
Squad Fantom Aero
Saddle
Selle Italia SLR BOOST EVO
Bottom Bracket
T-47
Headset
FSA NO.55R 1.5 ACR
Front Thru Axle
Robert Axle Project 12 mm Lightning L 163 mm M12 x 1.5
Rear Thru Axle
Robert Axle Project Ligthning L120 mm x M12 x 1.5
Wheelset
Zipp 303 s
Tires
Vittoria Corsa N.Ext 28 mm
Shifter/Brake Levers
Shimano Dura Ace R-9250
Crankset
Shimano Dura Ace R-9200
Powermeter
4iiii Dual Side Precision 3+ Pro
Crank Sizing
160/165/170/1752.5/175 mm
Chain
Shimano CN M9100 12s
Cassette
Shimano Dura Ace R-9200 11x30
Front Derailleur
Shimano Dura Ace R-9250 Di2

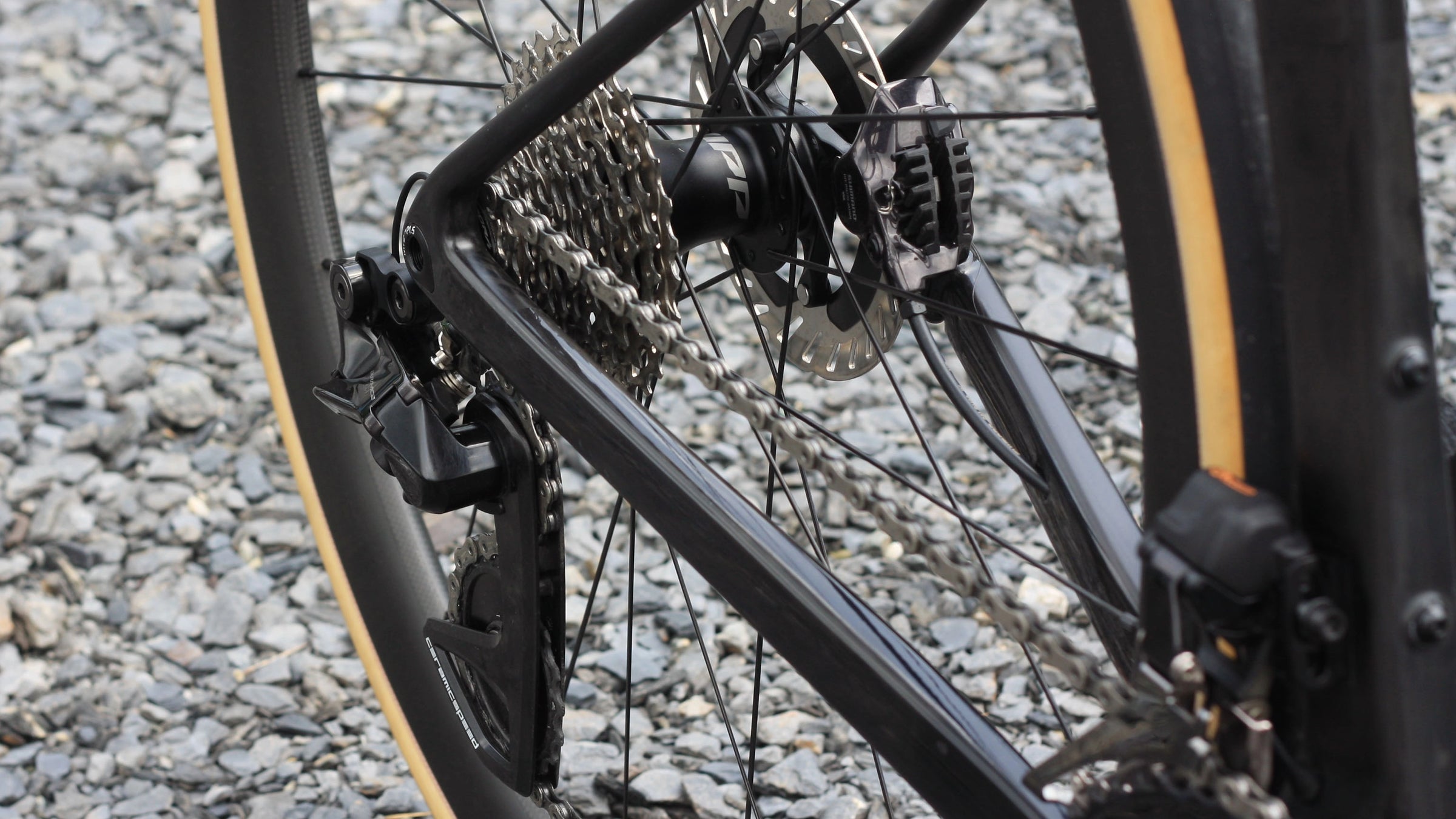

Rear Derailleur
Shimano Dura Ace R-9250 Di2
Front Brake Rotor
RT-CL 900 160 mm
Rear Brake Rotor
RT-CL 900 140 mm
Accessories
Garmin/Wahoo holder incl
Max Tire Width
Sizes
48 X-Small/ 52 Small/ 54 Medium/56 Large/ 58 X-Large
Fork
Squad Fantom SMR
Cockpit
Squad V-12 Integrated HB
Handlebar Sizing
80x36, 80x38,90x38, 90x40, 90x42, 100x38, 100x40, 100x42, 100x44, 110x40, 110x42, 110x44, 120x40, 120x42, 120x44, 130x42
Seat Post
Squad Fantom Aero
Saddle
Selle Italia SLR BOOST EVO
Bottom Bracket
T-47
Headset
FSA NO.55R 1.5 ACR
Front Thru Axle
Robert Axle Project 12 mm Lightning L 163 mm M12 x 1.5
Rear Thru Axle
Robert Axle Project Ligthning L120 mm x M12 x 1.5
Wheelset
Zipp 303 s
Tires
Vittoria Corsa N.Ext 28 mm
Shifter/Brake Levers
Shimano Ultegra
Crankset
Shimano Ultegra R-8100 52x36
Powermeter
4iiii Dual Side Precision 3+ Pro
Crank Sizing
160/165/170/1752.5/175 mm
Chain
Shimano M-8100 12s
Cassette
Shimano Ultegra 11/30 or 11/34
Front Derailleur
Shimano Ultegra R-8150 Di2
Rear Derailleur
Shimano Ultegra R150 Di2
Front Brake Rotor
Shimano CL-RT800 160 mm
Rear Brake Rotor
Shimano CL-RT800 140 mm
Accessories
Garmin/Wahoo holder incl
Max Tire Width
34 mm
Sizes
48 X-Small/ 52 Small/ 54 Medium/56 Large/ 58 X-Large
Fork
Squad Fantom SMR
Cockpit
Handlebar Vision Trimax Aero Alloy
Handlebar Sizing
400 mm, 420 mm, 440 mm // Stem: FSA ACR 70/80/90/100/110/120/130 mm
Seat Post
Squad Fantom Aero
Saddle
Selle Italia SLR BOOST EVO
Bottom Bracket
T-47
Headset
FSA NO.55R 1.5 ACR
Front Thru Axle
Robert Axle Project 12 mm Lightning L 163 mm M12 x 1.5
Rear Thru Axle
Robert Axle Project Ligthning L120 mm x M12 x 1.5
Wheelset
Zipp 303 s
Tires
Vittoria Rubino TLR 700x28
Shifter/Brake Levers
Shimano 105 R-7150 Di2
Crankset
Shimano R-7100 50x34/52x36
Powermeter
N/A
Crank Sizing
160/165/170/172.5/175 mm
Chain
Shimano CN M7100 SLX 12s
Cassette
Shimano CS-HG 710 11x36
Front Derailleur
Shimano 105 R-7150 Di2
Rear Derailleur
Shimano 105 R-7150 Di2
Front Brake Rotor
Shimano RT-CL 700 160 mm
Rear Brake Rotor
Shimano RT-CL 700 140 mm
Accessories
Max Tire Width

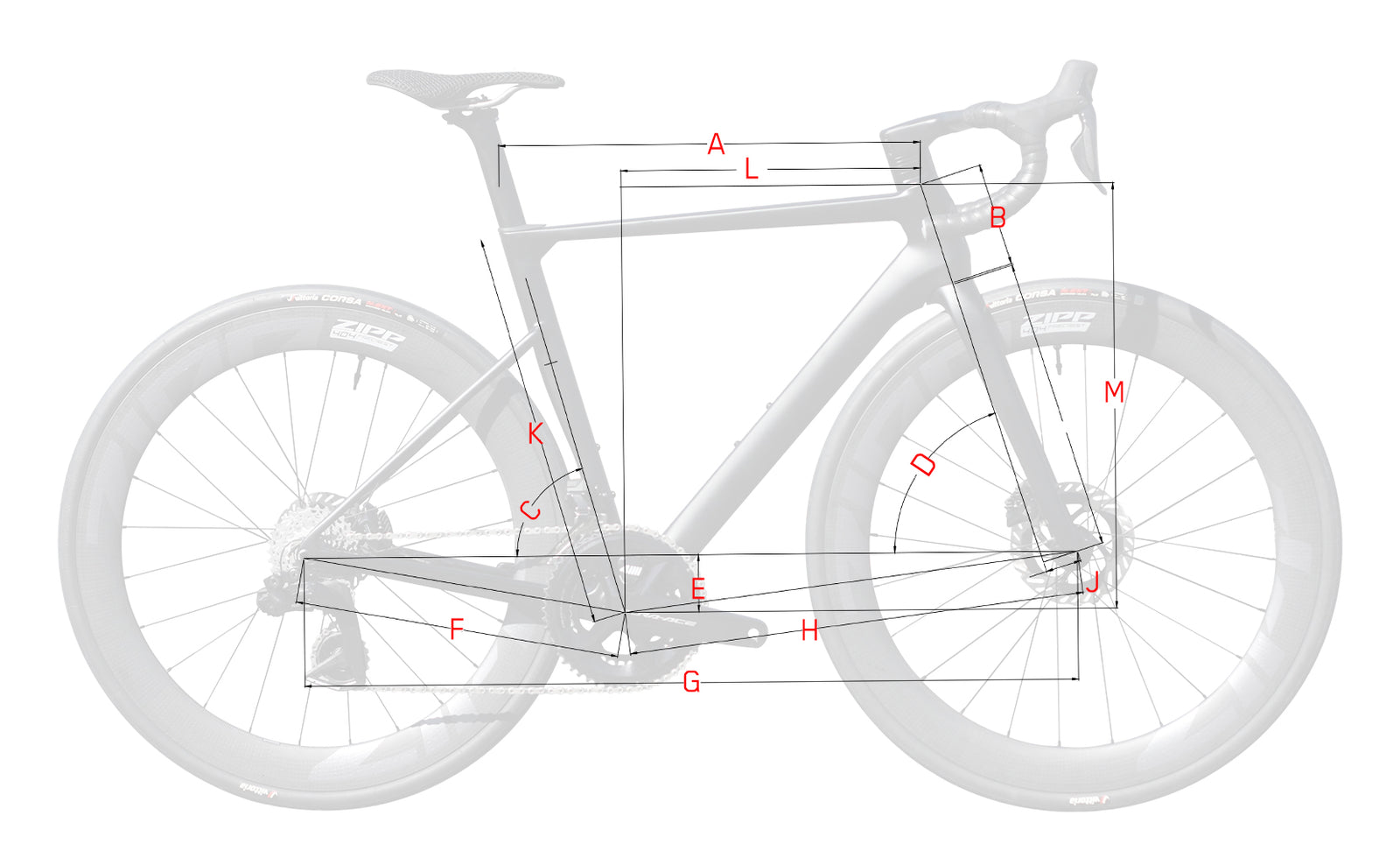

GEOMETRY
All measurements in millimetres (mm) and degrees (°).
| Size | X-Small (48) | Small (52) | Medium (54) | Large (56) | X-Large (57.5) |
|---|---|---|---|---|---|
| A Top Tube (mm) | 508 | 530 | 543.9 | 563 | 575.4 |
| B Head Tube Length (mm) | 117 | 130 | 148 | 166 | 186 |
| C Seat Tube Angle (°) | 75 | 74 | 74 | 73.5 | 73.5 |
| D Head Tube Angle (°) | 72 | 72.5 | 73 | 73.5 | 73.5 |
| E BB Drop (mm) | 72 | 72 | 72 | 72 | 72 |
| F Chainstay (mm) | 410 | 410 | 410 | 410 | 410 |
| G Wheelbase (mm) | 965.8 | 973.8 | 983 | 992 | 1004.6 |
| H BB → Front (mm) | 566.8 | 574.7 | 584 | 593 | 605.3 |
| I Fork Length (mm) | 368 | 368 | 368 | 368 | 368 |
| J Fork Rake (mm) | 45 | 45 | 45 | 45 | 45 |
| K Seat Tube C/T (mm) | 480 | 500 | 520 | 540 | 560 |
| L Reach (mm) | 369 | 377 | 385 | 393 | 400 |
| M Stack (mm) | 521 | 535 | 554 | 573 | 592 |
| Y Standover (mm) | - | - | - | - | - |
| PX Pad X (mm) | - | - | - | - | - |
| PY Pad Y (mm) | - | - | - | - | - |
| N Tire Clearance Max (mm) | 34 | 34 | 34 | 34 | 34 |
Specs subject to change. All values are nominal and may vary slightly.
